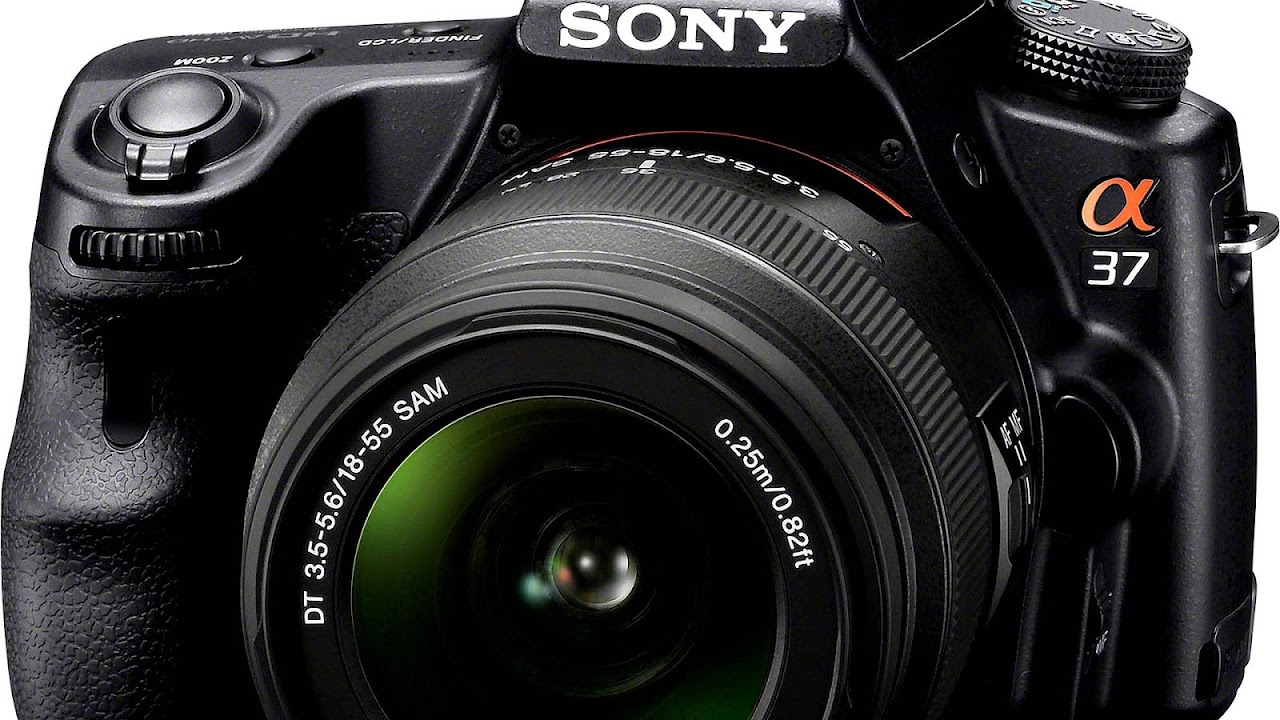

Sony Alpha SLT-A37 DSLR Camera with 18-55mm Zoom Lens SLTA37K
photo src: www.bhphotovideo.com

A zoom lens is a mechanical assembly of lens elements for which the focal length (and thus angle of view) can be varied, as opposed to a fixed focal length (FFL) lens (see prime lens).

A true zoom lens, also called a parfocal lens, is one that maintains focus when its focal length changes. A lens that loses focus during zooming is more properly called a varifocal lens. Despite being marketed as zoom lenses, virtually all consumer lenses with variable focal lengths use varifocal design.

The convenience of variable focal length comes at the cost of complexity - and some compromises on image quality, weight, dimensions, aperture, autofocus performance, and cost. For example, all zoom lenses suffer from at least slight, if not considerable, loss of image resolution at their maximum aperture, especially at the extremes of their focal length range. This effect is evident in the corners of the image, when displayed in a large format or high resolution. The greater the range of focal length a zoom lens offers, the more exaggerated these compromises must become.


Top 11 Best Ultra Zoom Bridge Digital Cameras 2017
photo src: www.ephotozine.com


Maps, Directions, and Place Reviews



Characteristics

Zoom lenses are often described by the ratio of their longest to shortest focal lengths. For example, a zoom lens with focal lengths ranging from 100 mm to 400 mm may be described as a 4:1 or "4×" zoom. The term superzoom or hyperzoom is used to describe photographic zoom lenses with very large focal length factors, typically more than 5× and ranging up to 19× in SLR camera lenses and 83× in amateur digital cameras. This ratio can be as high as 300× in professional television cameras. As of 2009, photographic zoom lenses beyond about 3× cannot generally produce imaging quality on par with prime lenses. Constant fast aperture zooms (usually f/2.8 or f/2.0) are typically restricted to this zoom range. Quality degradation is less perceptible when recording moving images at low resolution, which is why professional video and TV lenses are able to feature high zoom ratios. Digital photography can also accommodate algorithms that compensate for optical flaws, both within in-camera processors and post-production software.

Some photographic zoom lenses are long-focus lenses, with focal lengths longer than a normal lens, some are wide-angle lenses (wider than normal), and others cover a range from wide-angle to long-focus. Lenses in the latter group of zoom lenses, sometimes referred to as "normal" zooms, have displaced the fixed focal length lens as the popular one-lens selection on many contemporary cameras. The markings on these lenses usually say W and T for "Wide" and "Telephoto". Telephoto is designated because the longer focal length supplied by the negative diverging lens is longer than the overall lens assembly (the negative diverging lens acting as the "telephoto group").

Some digital cameras allow cropping and enlarging of a captured image, in order to emulate the effect of a longer focal length zoom lens (narrower angle of view). This is commonly known as digital zoom and produces an image of lower optical resolution than optical zoom. Exactly the same effect can be obtained by using digital image processing software on a computer to crop the digital image and enlarge the cropped area. Many digital cameras have both, combining them by first using the optical, then the digital zoom.

Zoom and superzoom lenses are commonly used with still, video, motion picture cameras, projectors, some binoculars, microscopes, telescopes, telescopic sights, and other optical instruments. In addition, the afocal part of a zoom lens can be used as a telescope of variable magnification to make an adjustable beam expander. This can be used, for example, to change the size of a laser beam so that the irradiance of the beam can be varied.


Camera With Zoom Lens Video



History

Early forms of zoom lenses were used in optical telescopes to provide continuous variation of the magnification of the image, and this was first reported in the proceedings of the Royal Society in 1834. Early patents for telephoto lenses also included movable lens elements which could be adjusted to change the overall focal length of the lens. Lenses of this kind are now called varifocal lenses, since when the focal length is changed, the position of the focal plane also moves, requiring refocusing of the lens after each change.

The first true zoom lens, which retained near-sharp focus while the effective focal length of the lens assembly was changed, was patented in 1902 by Clile C. Allen (U.S. Patent 696,788). An early use of the zoom lens in cinema can be seen in the opening shot of the movie "It" starring Clara Bow, from 1927. The first industrial production was the Bell and Howell Cooke "Varo" 40-120 mm lens for 35mm movie cameras introduced in 1932. The most impressive early TV Zoom lens was the VAROTAL III from Rank Taylor Hobson from UK built in 1953. The Kilfitt 36-82 mm/2.8 Zoomar introduced in 1959 was the first varifocal lens in regular production for still 35mm photography. The first modern film zoom lens, the Pan-Cinor, was designed around 1950 by Roger Cuvillier, a French engineer working for SOM-Berthiot. It had an optical compensation zoom system. In 1956, Pierre Angénieux introduced the mechanical compensation system, enabling precise focus while zooming, in his 17-68mm lens for 16mm released in 1958. The same year a prototype of the 35mm version of the Angénieux 4x zoom, the 35-140mm was first used by cinematographer Roger Fellous for the production of Julie La Rousse. Angénieux received a 1964 technical award from the academy of motion pictures for the design of the 10 to 1 zoom lenses, including the 12-120mm for 16mm film cameras and the 25-250mm for 35mm film cameras.

Since then advances in optical design, particularly the use of computers for optical ray tracing, has made the design and construction of zoom lenses much easier, and they are now used widely in professional and amateur photography.


Fujifilm FinePix HS30EXR Bridge Camera Review
photo src: www.ephotozine.com


Design

There are many possible designs for zoom lenses, the most complex ones having upwards of thirty individual lens elements and multiple moving parts. Most, however, follow the same basic design. Generally they consist of a number of individual lenses that may be either fixed or slide axially along the body of the lens. While the magnification of a zoom lens changes, it is necessary to compensate for any movement of the focal plane to keep the focused image sharp. This compensation may be done by mechanical means (moving the complete lens assembly while the magnification of the lens changes) or optically (arranging the position of the focal plane to vary as little as possible while the lens is zoomed).

A simple scheme for a zoom lens divides the assembly into two parts: a focusing lens similar to a standard, fixed-focal-length photographic lens, preceded by an afocal zoom system, an arrangement of fixed and movable lens elements that does not focus the light, but alters the size of a beam of light travelling through it, and thus the overall magnification of the lens system.

In this simple optically compensated zoom lens, the afocal system consists of two positive (converging) lenses of equal focal length (lenses L1 and L3) with a negative (diverging) lens (L2) between them, with an absolute focal length less than half that of the positive lenses. Lens L3 is fixed, but lenses L1 and L2 can be moved axially in a particular non-linear relationship. This movement is usually performed by a complex arrangement of gears and cams in the lens housing, although some modern zoom lenses use computer-controlled servos to perform this positioning.

While the negative lens L2 moves from the front to the back of the lens, the lens L1 moves forward and then backward in a parabolic arc. In doing so, the overall angular magnification of the system varies, changing the effective focal length of the complete zoom lens. At each of the three points shown, the three-lens system is afocal (neither diverging or converging the light), and hence does not alter the position of the focal plane of the lens. Between these points, the system is not exactly afocal, but the variation in focal plane position can be small enough (about ±0.01 mm in a well-designed lens) not to make a significant change to the sharpness of the image.

An important issue in zoom lens design is the correction of optical aberrations (such as chromatic aberration and, in particular, field curvature) across the whole operating range of the lens; this is considerably harder in a zoom lens than a fixed lens, which needs only to correct the aberrations for one focal length. This problem was a major reason for the slow uptake of zoom lenses, with early designs being considerably inferior to contemporary fixed lenses and usable only with a narrow range of f-numbers. Modern optical design techniques have enabled the construction of zoom lenses with good aberration correction over widely variable focal lengths and apertures.

Whereas lenses used in cinematography and video applications are required to maintain focus while the focal length is changed, there is no such requirement for still photography and for zoom lenses used as projection lenses. Since it is harder to construct a lens that does not change focus with the same image quality as one that does, the latter applications often use lenses that require refocusing once the focal length has changed (and thus strictly speaking are varifocal lenses, not zoom lenses). As most modern still cameras are autofocusing, this is not a problem.

Designers of zoom lenses with large zoom ratios often trade one or more aberrations for higher image sharpness. For example, a greater degree of barrel and pincushion distortion is tolerated in lenses that span the focal length range from wide angle to telephoto with a focal ratio of 10× or more than would be acceptable in a fixed focal length lens or a zoom lens with a lower ratio. Although modern design methods have been continually reducing this problem, barrel distortion of greater than one percent is common in these large-ratio lenses. Another price paid is that at the extreme telephoto setting of the lens the effective focal length changes significantly while the lens is focused on closer objects. The apparent focal length can more than halve while the lens is focused from infinity to medium close-up. To a lesser degree, this effect is also seen in fixed focal length lenses that move internal lens elements, rather than the entire lens, to effect changes in magnification.


Sony PXW-FS5 XDCAM Super 35 Camera System PXW-FS5K B&H
photo src: www.bhphotovideo.com


Varifocal lens

Many so-called "zoom" lenses, particularly in the case of fixed-lens cameras, are actually varifocal lenses, which gives lens designers more flexibility in optical design trade-offs (focal length range, maximal aperture, size, weight, cost) than true parfocal zoom, and which is practical because of autofocus, and because the camera processor can move the lens to compensate for the change in the position of the focal plane while changing magnification ("zooming"), making operation essentially the same as a true parfocal zoom.

Source of the article : Wikipedia
